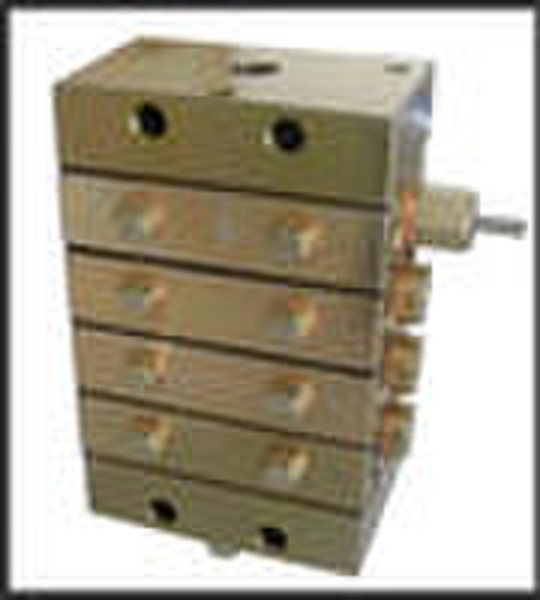

Progressive block Operation Individual valve blocks operate in a pre-arranged progressive sequence. During operation, the piston within the block must complete a full discharge cycle before another piston begins operation. As long as lubricant is supplied under pressure to the inlet section of the divider, manifold valve blocks will continue to operate in a progressive manner. When lubricant flow is interrupted to the inlet block, piston movement stops. When fl ow resumes, piston movement commences at the same point in the discharge cycle. Feed lines deliver lubricant from the valve block to individual lube points. Should a discharge line become blocked, it will stop all the valves operating. Indicators are available to alert a blockage. Technical Data Material Steel (zinc plated) Maximum Operating Pressure 138 bar (2,000 psi) Lubricant Oil, up to NLGI No. 2 Approximate Weight of Complete Divider Valve Grease Assembly 3 Section Divider 0.88 kg (1 lb, 15 oz) 4 Section Divider 1.04 kg (2 lb, 5 oz) 5 Section Divider 1.21 kg (2 lb, 11 oz) 6 Section Divider 1.38 kg (3 lb, 1 oz) 7 Section Divider 1.55 kg (3 lb, 7 oz) 8 Section Divider 1.72 kg (3 lb, 13 oz) 9 Section Divider 1.90 kg (4 lb, 3 oz) Output Displacement Valve Sizes Cu. in. (cc) per Outlet 05T (Twin Outlets) 0.005 (0.082) 10T (Twin Outlets) 0.010 (0.164) 15T (Twin Outlets) 0.015 (0.246) 05S (Single Outlet) 0.010 (0.164) 10S (Single Outlet) 0.020 (0.328) 15S (Single Outlet) 0.030 (0.492) Note: Single outlet blocks discharge double their rated capacity during one complete valve cycle.
